Fire Sprinkler Pipes video

Fire Sprinkler Pipes

Typically composed of carbon steel, fire sprinkler pipe and accompanying fittings are used to transport water or other liquids and connect firefighting apparatus.

Description

fire fighting pipes


Typically composed of carbon steel, fire sprinkler pipe and accompanying fittings are used to transport water or other liquids and connect firefighting apparatus. The term "fire protection pipe and fittings" is also used. The purpose of painting the fire pipeline red (or coating it with red anticorrosion epoxy coating), as required by the appropriate rules and standards, is to distinguish it from other pipeline systems. Since fire sprinkler pipes are typically put in a static position, thorough quality control is needed.


In a nutshell, fire sprinkler pipe and fittings need to be well-suited to high temperatures, corrosion, and pressure.


There are different kinds of basic pipes can be chosen for fire sprinkler pipes, such as seamless pipes, ERW pipes and galvanized steel pipes. Customers can select the pipes according to the requirement of the projects.



SPECIFICATION

———


Product Name: Fire sprinkler pipes

Out Diameter: 21.3 - 273(1/2" - 10")

Thickness: 2.77-9.27mm

Length: 6m, 12m, SRL, DRL or as per customer’s requirement

Pipe Ends: Plain, beveled, grooved.

Surface: Red painting or red epoxy power coating.

Standard: ASTM A53, ASTM A795

Grade: Grade A, Grade B.

Application: For general firefighting purposes.


PRODUCTION FLOW

———

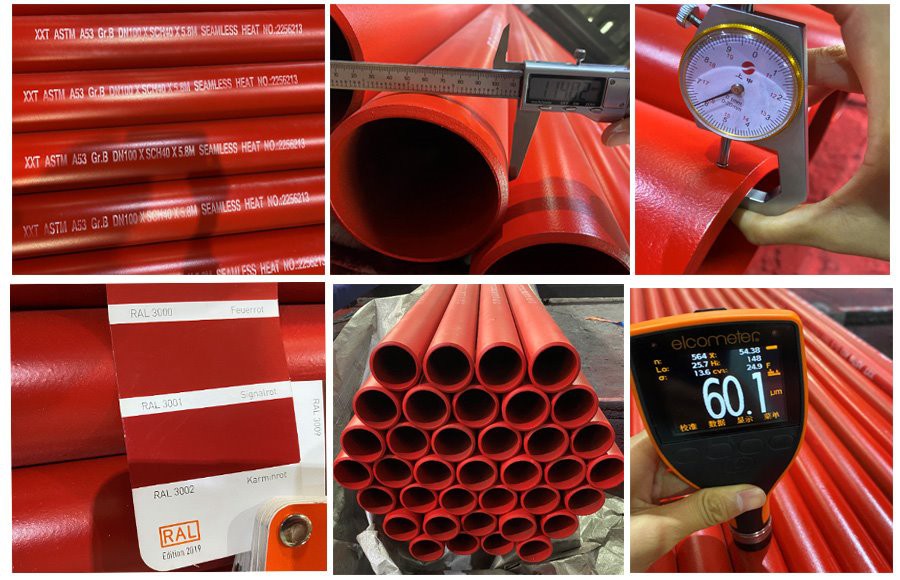

QUALITY INSPECTION

———

picture for fire fighttings


image014(001)

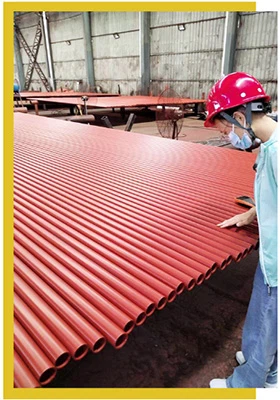

PACKING AND LOADING

———


loading for fire fightting pipes

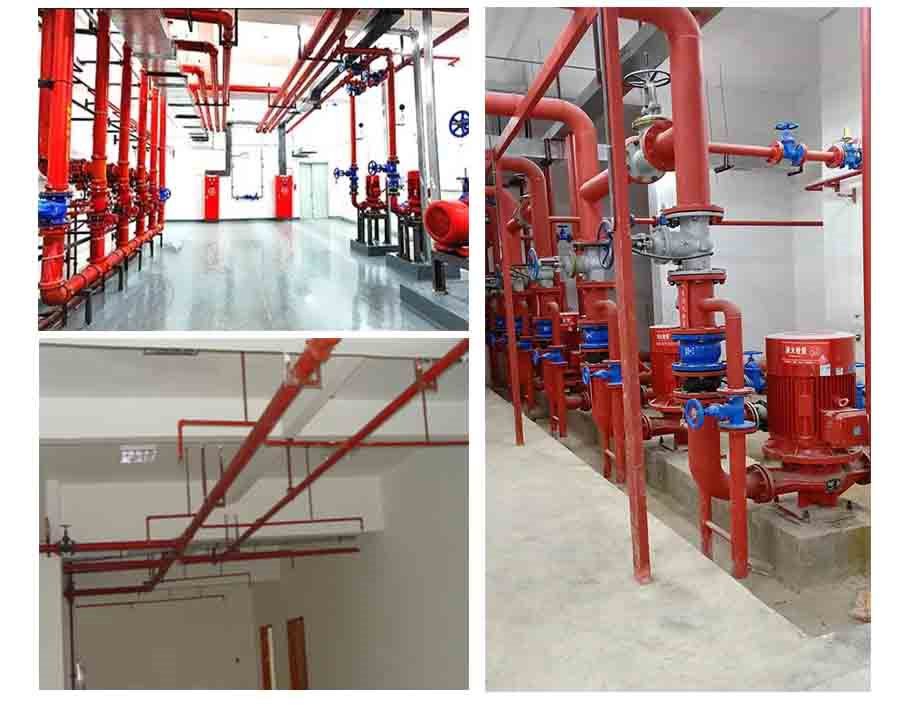

APPLICATION

———


APPLICATION FOR FIRE FIGHTING PIPES
